As a technician when you try to repair mobile phone or any electronic equipment. you have to required some tools Hare is details which tools are mainly used to repair a mobile device .All tools are available in market in two types one ESD safe & another one non esd, this is impotent which one you select , be care full when you select tools for repairing mobile device or any digital circuit you must be select ESD safe tools.
- SCREW DRIVER
- MOBILE OPENER
- ESD BRUSH
- ESD TWEEZER
- PCB HOLDER
- ESD WRIST BAND/ESD GLOVES
- MAGNIFINE GLASS
- DESOLDER WEEK
- DC POWER SUPPLY
- HOT AIR GUN
- MULTIMETER
1st you need to a repair desk which is (ESD) (Electro static device) safe, Then select all repair tools thare are most be ESD certified. This is very important for repairing digital Electronics device .
Now follow the below details which tools are required for a standard mobile workshop.

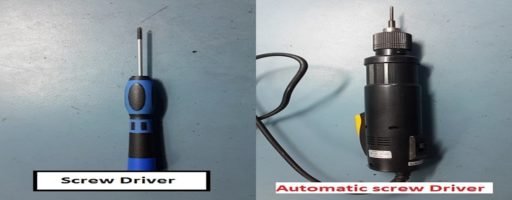

SCREW DRIVER: Screwdriver: it’s common or important tools for repairing mobile phone or any electronics gadgets, its help to open device screw. Usually its 2 types one manual or fix & another one automatic, it’s also found in different type of bits or size (like 4 head, flat or T type, 6 head) etc. for mobile phone purpose we can use 4 head 1.5mm/2mm (for open SAMSUNG, LG, MOTOROLA, TATA,etc). And 6 head 1.5mm/2mm for open (NOKIA, SONY, MOTOROLA,) etc. see the blow 2 snap of screwdriver
www.infohundread.com

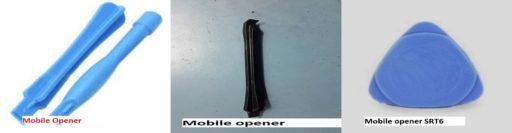

MOBILE OPENER: it’s just an opening tools, help to open hard lock system in mobile device, there are deferent type of shape. See the below picture. If you don’t have this you can use sim card guitter picks

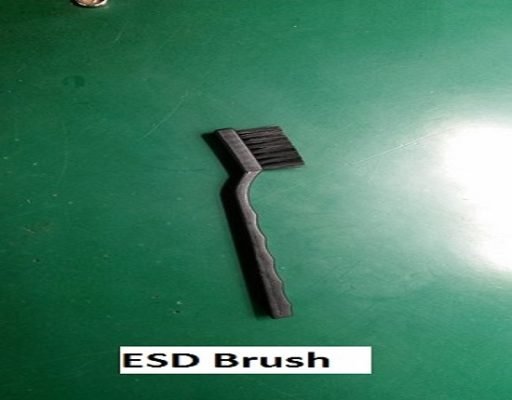

ESD BRUSH: its help to cline mobile phone PBA (printed board assembly),PCB(printed circuit board), SMD (Surface Mount Device) components,

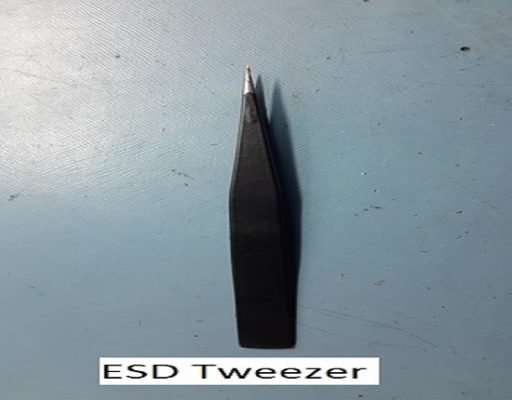

ESD TWEEZER: tweezers is a very common everybody know about this tools , commonly it’s made by stillness still or metal plate , its help to pick any components . Or any small object.
PCB HOLDER: its normally PCB or mother board fixing tools , after fix mother board with this tools you can easily work over the pcb replace any components , also is help to keep safe form damage other components while work.

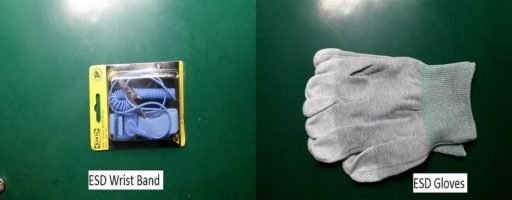

ESD WRIST BAND/ESD GLOVES: this is important tools for every digital device repairing its help to discharge statics current. It’s easy to use place in your hand into wrist band like a bracelet then connects to ground through wair which is provided including packing box
MAGNIFINE GLASS: everyone aware about this name, it’s just help to understand small smd components in motherboard.

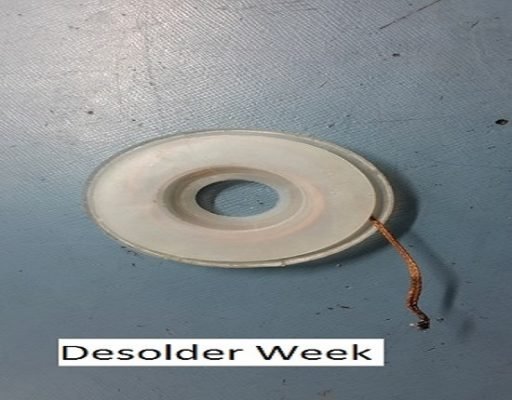

DESOLDER WEEK. Its help to remove or dissembling solder type components which are install in motherboard.
DC POWER SUPPLY:- it’s very important tools for repairing mobile device . To under stud mobile current consumption, checking individually circuit diagram by providing adjustable supply through this tools.
HOT AIR GUN: its help to reassemble or disassemble s SMD components, majorly ics ,

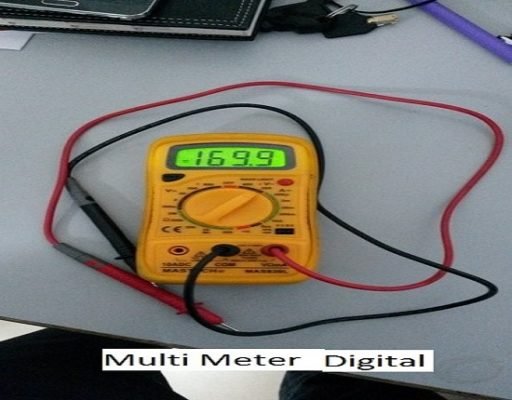

MULTIMETER: you can measure the current, volt or every components parameter & working behavior through this tool. Basically it’s two type one analog & digital.
